Stainless Steel Internal and External Thread Union Elbow: Complete Technical Guide

Introduction

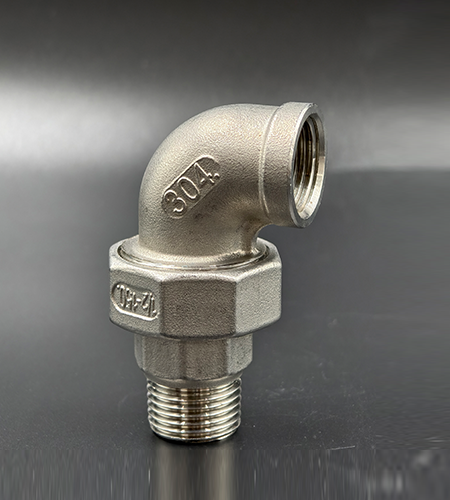

The Stainless Steel Internal and External Thread Union Elbow is a precision-engineered pipe fitting designed to connect two pipes at a 90-degree angle while offering easy disassembly and reassembly via its union structure. One end features a female (internal) thread, and the other a male (external) thread, enabling seamless connections between differently threaded piping components. This union elbow is widely used in plumbing, HVAC, gas lines, and chemical processing systems where both durability and maintainability are critical.

In this guide, we’ll explore fault diagnosis, repair procedures, preventive maintenance, transportation best practices, and usage recommendations, helping ensure your pipeline systems operate with optimal efficiency and minimal downtime.

Product Overview

H2: Fault Diagnosis and Repair

Despite the Stainless steel union elbow's high durability, occasional faults can occur in extreme environments or over time. Early diagnosis helps minimize system disruption.

H3: Common Faults

H2: Maintenance Tips

Proactive maintenance is crucial for extending the service life of the stainless steel union elbow, especially in high-demand applications.

H3: Routine Maintenance Checklist

H3: Best Practices

• Do not overtighten. Stainless steel threads are prone to galling. Always use anti-seize compound during installation.

• Avoid mismatched threads. Ensure male and female threads follow the same standard (e.g., NPT to NPT).

• Use thread sealant carefully. Excess sealant can enter the pipe system and cause contamination or flow disruption.

H2: Transportation Requirements

Proper transportation and packaging are vital to maintaining product integrity from factory to installation site.

H3: Recommended Transport Guidelines

H3: Shipping Notes

• For international shipping, include material certificates (e.g., EN10204 3.1), compliance documents (RoHS, ISO), and handling instructions.

• Handle with care to avoid deforming threads or damaging union surfaces during transit.

H2: Usage Recommendations

The stainless steel internal and external thread union elbow is ideal for use in systems requiring both angular alignment and quick disconnection. Below are recommendations based on practical usage in industrial settings.

H3: Ideal Application Scenarios

H3: Installation Advice

1. Pre-check threads for contamination, burrs, or wear. Clean with a soft brush if necessary.

2. Apply PTFE tape or approved sealant only on the male threads. Avoid clogging the system.

3. Hand-tighten the joint, then use a wrench to finish tightening.

4. Use two wrenches to hold both sides while tightening the union nut—this prevents stress on the piping.

5. After installation, pressurize slowly to check for leaks before full operation.

H2: Key Advantages

✅ Union Structure

• Allows the elbow to be separated without rotating the pipes—ideal for frequent maintenance areas.

✅ Mixed Thread Compatibility

• One female and one male thread allow flexible integration with various fittings or pipe sections.

✅ Superior Durability

• High resistance to corrosion, pressure, and thermal cycling, especially in SS316 and SS316L grades.

✅ Leak-Proof Design

• When installed with proper sealing materials, the fitting ensures long-term tightness and reliability.

✅ Hygienic and Food-Safe

• The smooth stainless steel surface is easy to sanitize, making it suitable for food and pharmaceutical environments.

H2: Technical Specifications

H2: Frequently Asked Questions (FAQ)

Q1: Can this elbow be reused after disassembly?

A: Yes. As long as the threads are intact and sealing materials are replaced, the elbow can be reused safely.

Q2: Is it suitable for underground installation?

A: While stainless steel is corrosion-resistant, additional protective coatings are recommended for underground use.

Q3: Does it require special tools to install?

A: No. Standard pipe wrenches or adjustable spanners are sufficient. Two wrenches are recommended for union tightening.

Q4: Can I install this in vertical pipelines?

A: Yes. It works equally well in horizontal and vertical pipe configurations.

Conclusion

The Stainless Steel Internal and External Thread Union Elbow is an indispensable component in modern pipeline systems where flexibility, maintenance access, and corrosion resistance are priorities. Its unique union design combined with mixed thread types makes it easy to install, disassemble, and maintain, even in tight or high-risk environments.

Whether you are building a chemical processing line, upgrading an HVAC system, or maintaining a sanitary water loop, this elbow fitting offers performance, reliability, and longevity.
